OSN POWER Toshiba Lithium Titanate Lto Pouch Cell 2.4v20Ah For Electric Bus
产品简介
OSN POWER Toshiba Lithium Titanate Lto Pouch Cell 2.4v20Ah For Electric Bus ,electric bicycle,electric scooter
产品详细信息
Product introduction:
The biggest difference between the two is that conventional lithium-ion batteries use carbon materials for anode, while LTO batteries use lithium-titanate. LTO, the main component of the LTO battery, is a kind of ceramic used for materials like dyes, paints and so on. LTO utilizes such material by processing into nano-scale superfine micro-powder to use as an electrode material. Using LTO as anode material also allows us to use wider range of selections of materials for cathode material and electrolytic solution. That is why LTO can realize various advantages over conventional lithium-ion batteries.
Number |
Item |
Parameters |
1 |
Model Number |
OSN-LTO-20AH |
2 |
Nominal Voltage |
2.4V |
3 |
Nominal Capacity |
20 Ah |
4 |
Charge Cut-off Voltage |
2.7V |
5 |
Discharge Cut-off Voltage |
1.5V |
6 |
weight |
515g |
7 | Cycle life |
≥20000 times(0.2C,25℃) |
8 |
Operating temperature |
-30℃-55℃(Special requirements can be customized) |
Features&advantages:

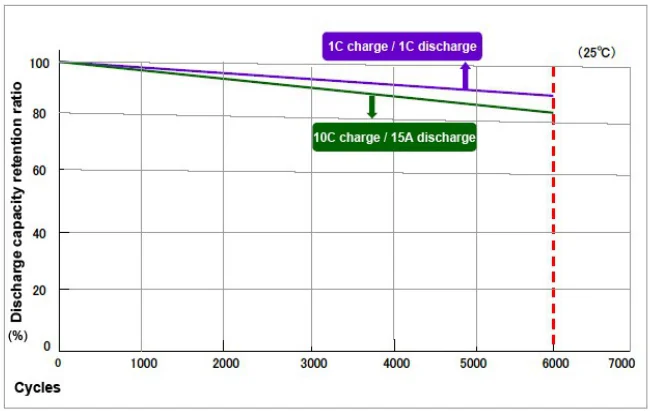

1. Super long cycle life 2.Rapid charging
3.High power 4.Large usable capacity
Test :

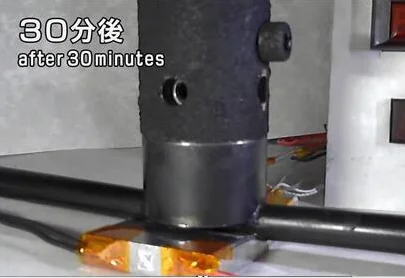

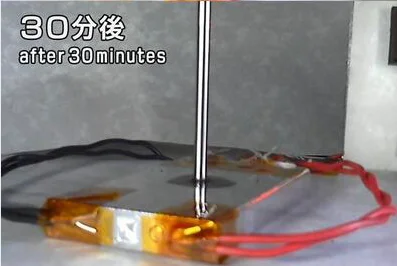

1.Acupuncture testing 2.Crush testing

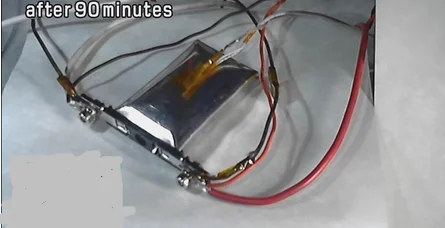

3.Over charge testing
