Yinlong Lithium Titanate LTO Battery 66160 2.3V 35Ah for Solar Energy Storage.

产品详细信息

Product Item :

2.3V 35Ah Lithium Titanate Battery for 10KW Hybrid inverter

Product Description

LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. as a new type rechargeable lithium battery, LTO battery has great performances of perfect high safety, high stability,super long cycle life and strong temperature tolerance.

Specification

Item

Parameters

Model

OSN-LTO-66160H

Materials

LTO

Nominal capacity

40Ah

Nominal voltage

2.3 V

Dimension

Length: 160±1.5mm

Diameter: 66±1mm

Weight

1.24±0.1kg

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Standard charge/discharge current

Charge current

1C(40 A)

Discharge current

1C(40A)

Maximum charge current

10C

Maximum discharge current

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65℃

Discharging

-50℃~ 65℃

Storage Thermal Ambient

Short term(within 1 month)

-20℃~ 45℃

Short term(within 1 year)

-20℃~ 20℃

LTO Advantages

Faster charge: 6mins fully charged

Higher discharge rate: Up to 10C

Wide working temperature range: -50°C ~ 65°C

Super long cycle life: over 30,000 times

Safety

Other Features

Discharge Curve at 1C

Discharge curve at 0.25C

Other LTO Batteries

We supply full range of LTO Batteries ,the more you buy ,the best price you will get .

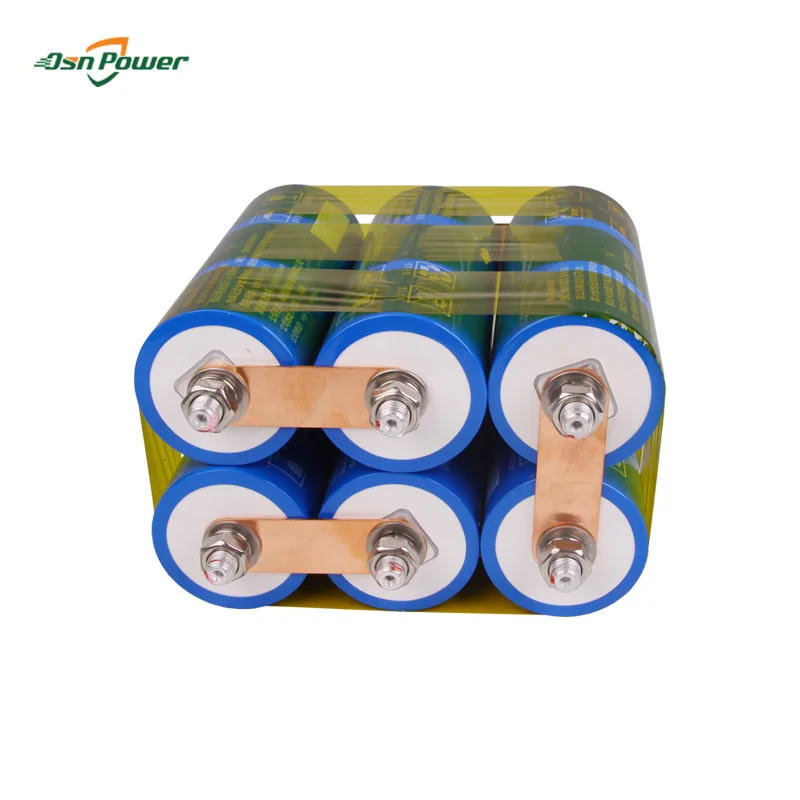

Yinlong Cylindrical 66160 30Ah ,35Ah and 40Ah ;66260 55Ah

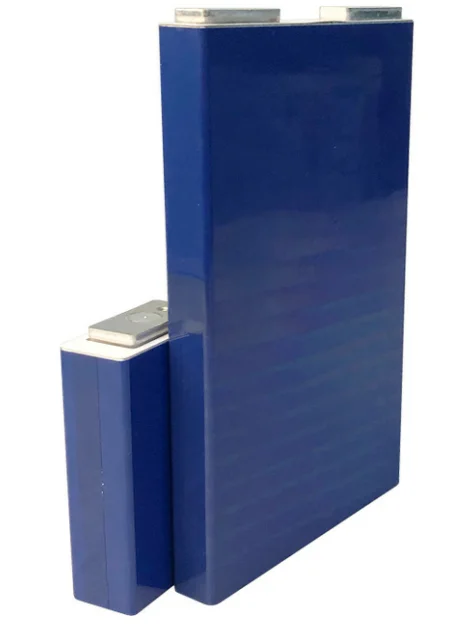

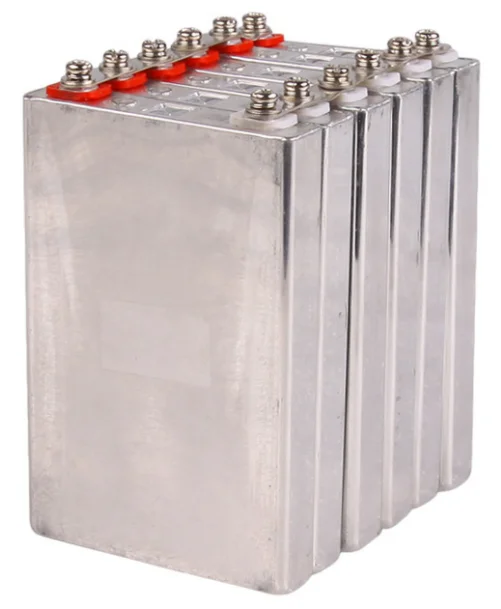

Yinlong Prismatic LTO 2,3V 30Ah and 33Ah

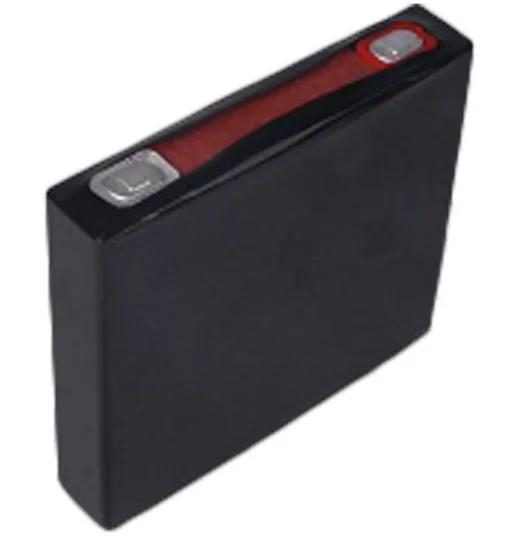

Toshiba LTO 2.9Ah ,10Ah and 20Ah
